제품 상세 정보:
|
|
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Hanrui |
| 인증: | CE |
| 모델 번호: | HHA150 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 1 |
| 가격: | negotiable |
| 포장 세부 사항: | 합판 |
| 배달 시간: | 4-6 주 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 3000SETS/YEAR |
|
상세 정보 |
|||
| 물자: | 당신의 필요에 따라 | 주요 크기: | 2" - 40" |
|---|---|---|---|
| 작동 범위: | -20℃~500℃ | 연결 methord: | 웨이퍼/플랜지 유형 |
| 적용 가능한 물자: | 파우더 / 입자 /particle은 혼합합니다 | 압력 범위: | ATM 0.35MPa |
| MOQ: | 1 세트 | 선박 방법: | sea/by 공기 등에 의하여. |
| 강조하다: | 0.35MPA 활판,PN10 슬라이드 게이트 밸브,0.35MPa 슬라이드 게이트 밸브 |
||
제품 설명

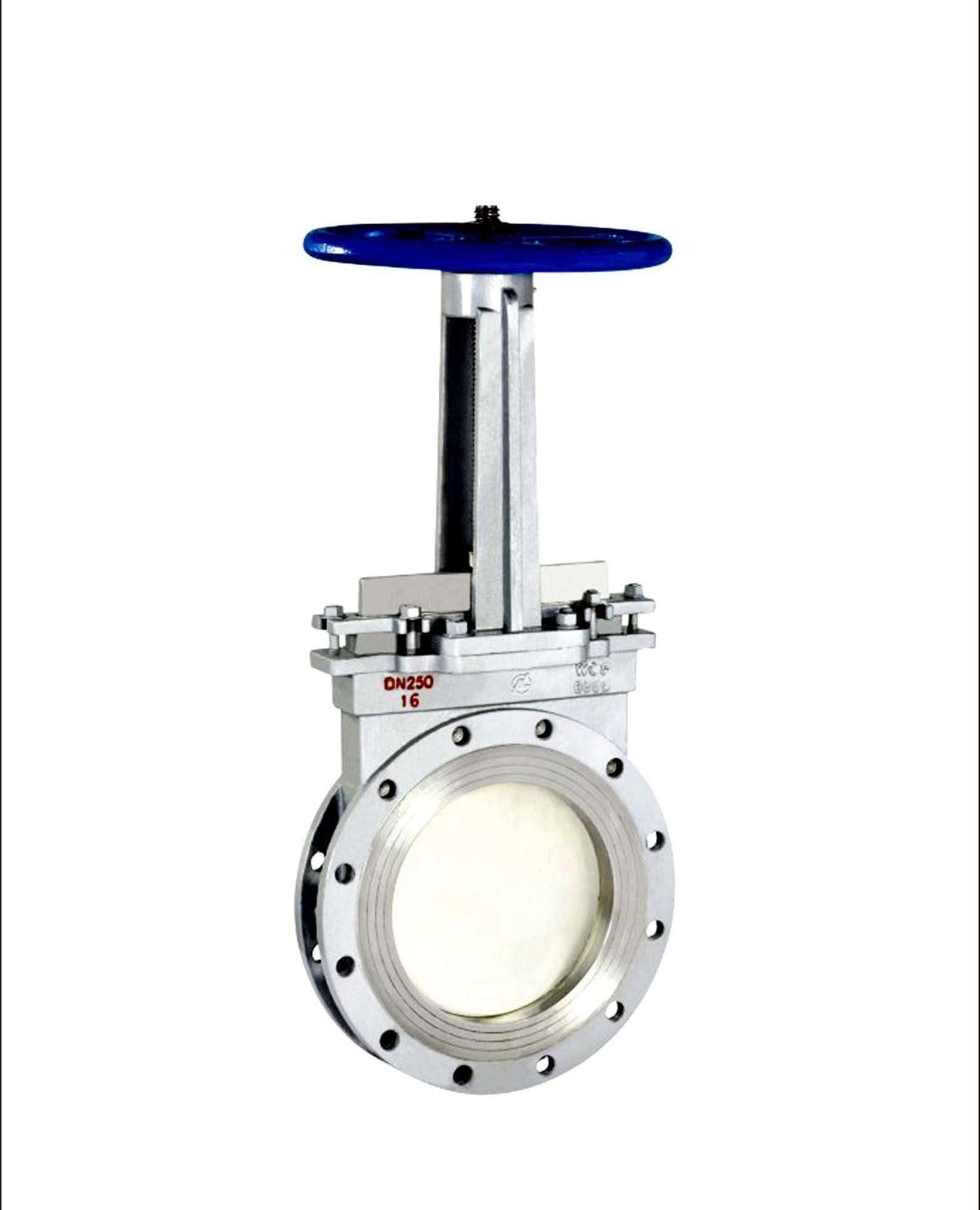

special designed slide gate valves for material conveying freely
Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.
Standard Test:
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Pressure: PN10, Class125
Body Materials: UPVC,FRPP,ABS,CPVC,PE
Seat Materials: NBR, EPDM, FPM
Disc Materials: UPVC,FRPP,ABS,CPVC,PE
Stem Materials: SS416, SS304, SS316
Product details
Working pressure of slide gate valve: ATM/0.1MPA~0.35MPA
Working temperature of slide gate valve: -20℃~500℃
Main size: DN100-1000
Main material: SS304, SS304L, SS316, SS316L, WCB and etc.
Driving model: manual, pneumatic or electrical
Connection model: wafer type and flange type
Flange Connection Rating: ANSI B16.5 150LB, GB, HG, SH or designated by client
Mian Technical Data Sheet
| working pressure | ATM/LP--ATM/0.1MPA MP--0.35MPa |
| Working temperature | -20℃-200℃,≤500℃ |
| Main size | DN50-DN1000MM(2''-40'') |
| Main materials | SS304, SS304L,SS316, SS316L, WCB etc. |
| Connection Methord | Wafer type / Flange type |
| Applicable medium | Solid materials(Powder, particles, Powders/particles mixtures etc. ) |
FRQ questions:
1. Can we choose the material of the valve ?
Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size ?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose the brand of the cylinder?
Yes , you can select cylinder brand according to your own requirement.
